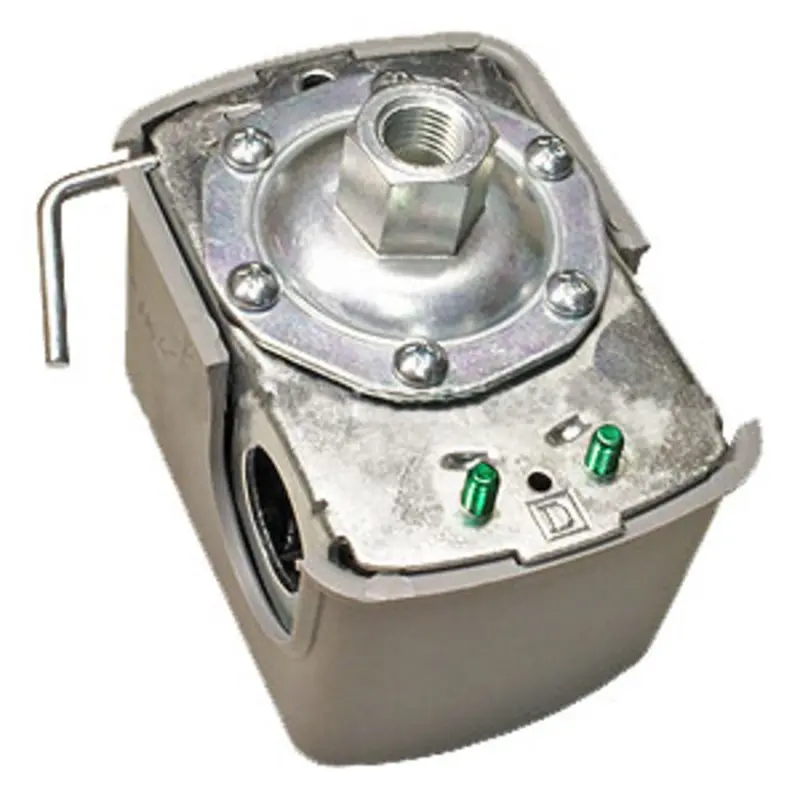

Square D 30/50 Psi Adjustable Low-Pressure Diaphragm Switch — Dpst, 1/4″ Fpt

Description

Square D Pumptrol 9013FSG2J21M4 well tank pressure switches are the industry standard for household well installations. They are easy to install, have adjustable cut-in and cut-out settings and can control both submersible pumps and jet pumps.

Specifications:

• Amps: 10A
• Actuator Type: Diaphragm
• Diaphragm: Nitrile (Buna N)
• UL Listed and CSA Certified
• Indoor Use
• Pressure Connection: 1/4″ FNPT
• Maximum Voltage Rating: 575VAC
• Factory Set Cut-In Pressure: 30 psi
• Factory Set Cut-Out Pressure: 50 psi
• Maximum Allowable Pressure: 220 psig
• Low Pressure Cut-Off: 10 psi below cut-in
