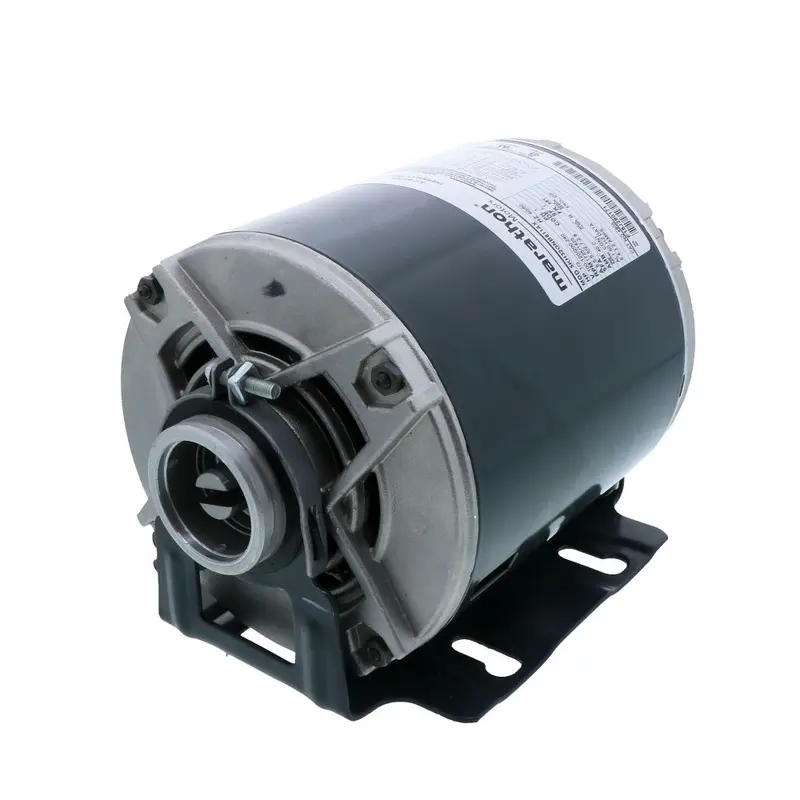

Marathon Electric 828 Nema 48Yz Frame Motor For Ro And Carbonation Systems – 1/3 Hp, Dual Voltage (100–120V / 240V Ac)

Description

This 1/3 HP RO/Carbonator Motor is manufactured by Marathon Electric to be completely interchangeable with OEM units. The 4805 motor features an automatic reset thermal protector and is UL recognized and CSA certified. The pump can be mounted vertically or horizontally to suit your application.

Features:

• Auto reset thermal protection
• Clamp-on pump mount
• Voltag: 100-120/200-240V AC single phase
• Rotation: counterclockwise (can be reversed to clockwise)
• Procon Stock Number: 828
• Marathon Model Number: 5KH32GNB811X
• Marathon Catalog Number: 4805
• Manufactured by Marathon Electric (formerly Manufactured by GE)
• Formerly known as GE model number 5KH36MNA445X

Specifications:

• Power: 1/3 HP
• RPM: 1725 RPM @ 60Hz, 1425 @ 50 Hz
• NEMA Frame: 48YZ
• Voltage: 100-120/200-240 VAC
• Hertz: 60/50
• Amps: 5.5-5.6/2.7-2.8
• Type: Single Phase
• Enclosure: Open Drip Proof
• Insulation: Class B
• Ambient: 40 C
• Shaft Diameter: 5/8″ Slotted
• Shaft Length: 1-1/2″
